Controls

Standard package: LUX-01

LAMILUX offer a range of controls to provide the complete solution for Smoke and Natural Ventilation requirements. The LAMILUX standard controls package consists of a Control Panel, Manual Call Point and Smoke Detector. This package can be ordered by calling LAMILUX on 01284 749051 or emailing the team at sales(at)lamiluxskylights.co.uk, quoting order code LUX-01.

Additional control products are also available. Contact LAMILUX now to discuss your requirements.

White control panel

Control Panel

The compact SHEV Control Panel provides a stabilised output voltage of 24V DC rated at 8Amp. The Panel can operate independently or as part of a wider network controlled system. It has a 72 hour battery backup to remain operational in the event of a mains supply failure

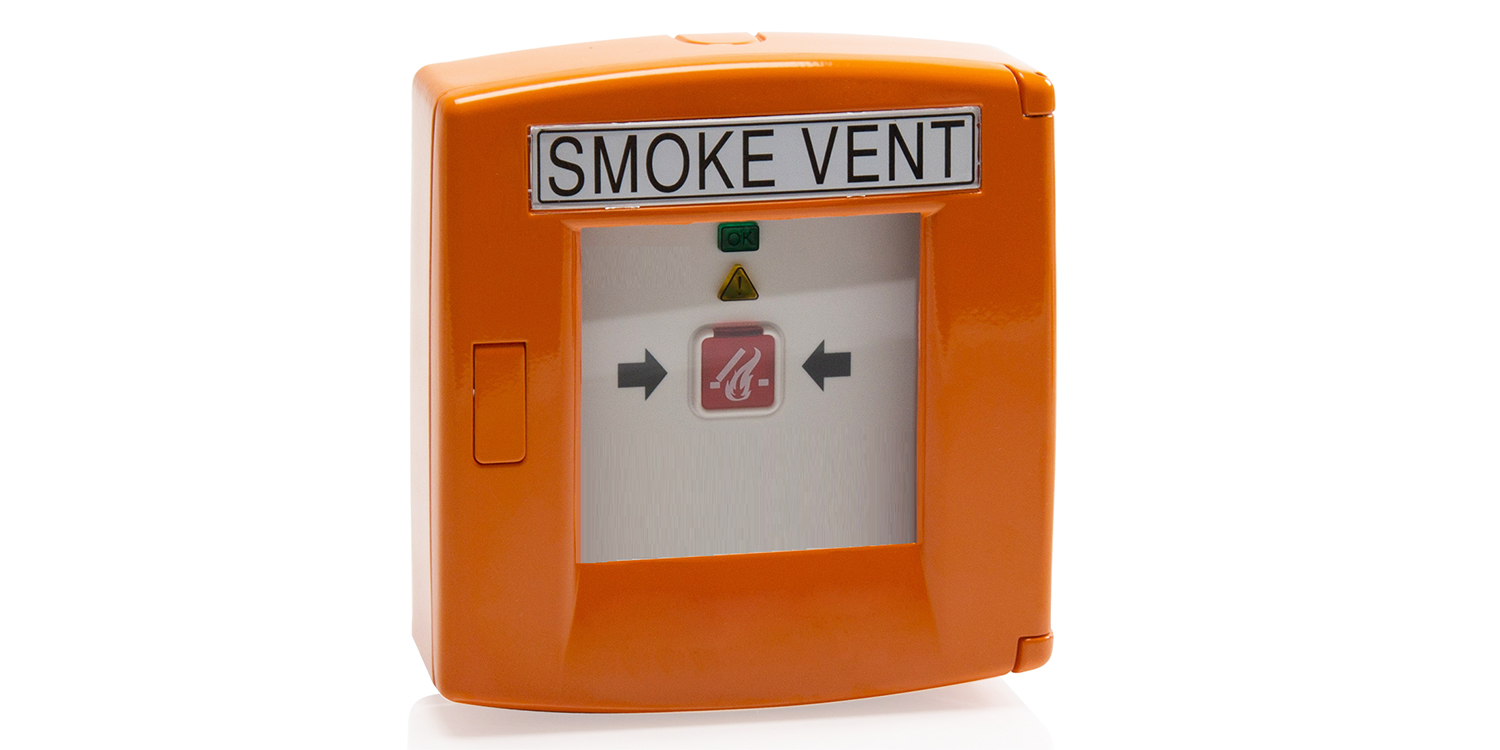

Orange control point panel

Manual Call Point

The MCP is used to trigger and reset LAMILUX SHEV systems and includes the status indication of the Control Panel and system via LED’s

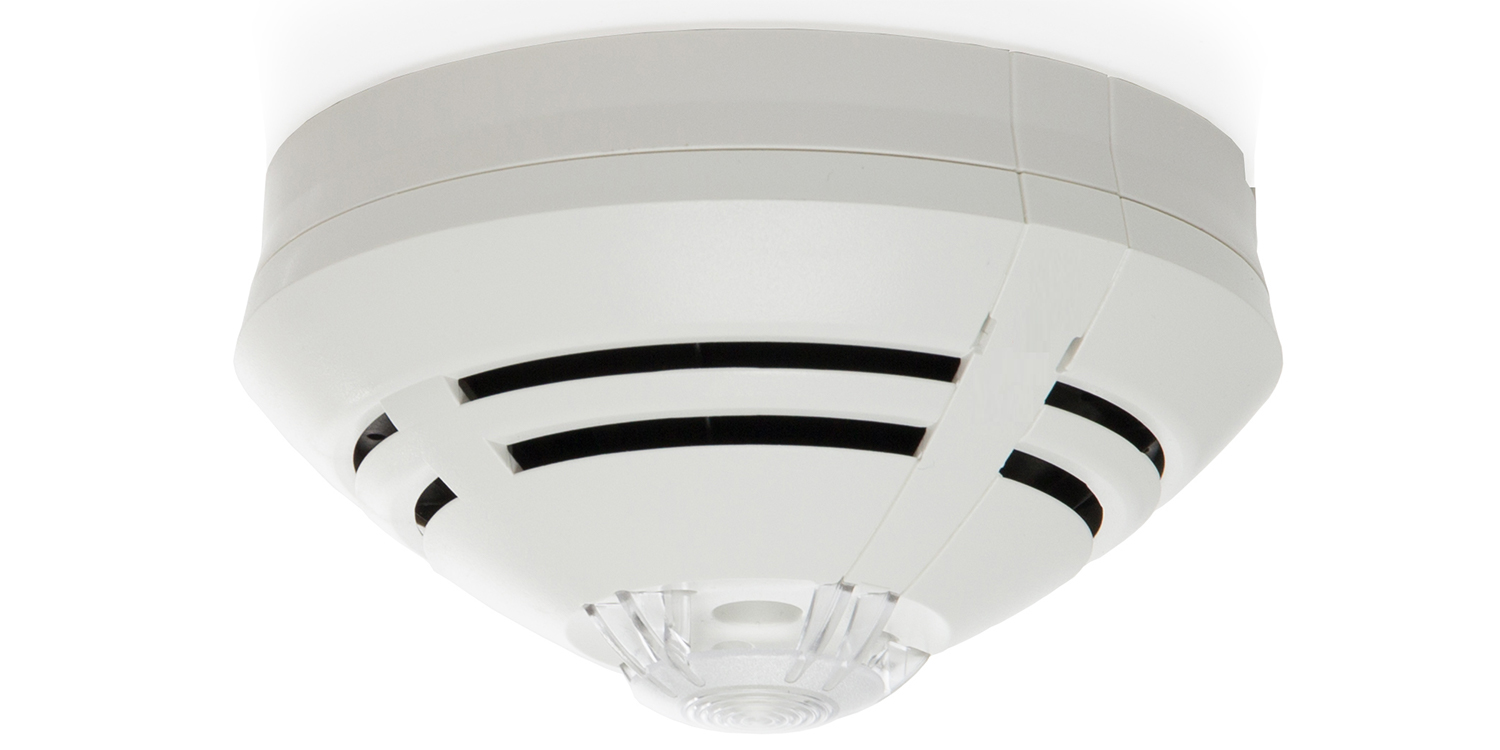

white smoke detector

Smoke Detector

The optical smoke detector is equipped with an alarm indicator by means of an LED. The unit sends a signal to the Control Panel in the event of smoke detection, the systems is then triggered into fire and the SHEV smoke vent is opened

Controls Standard Package Downloads

CONTROL PANEL

Spec sheet

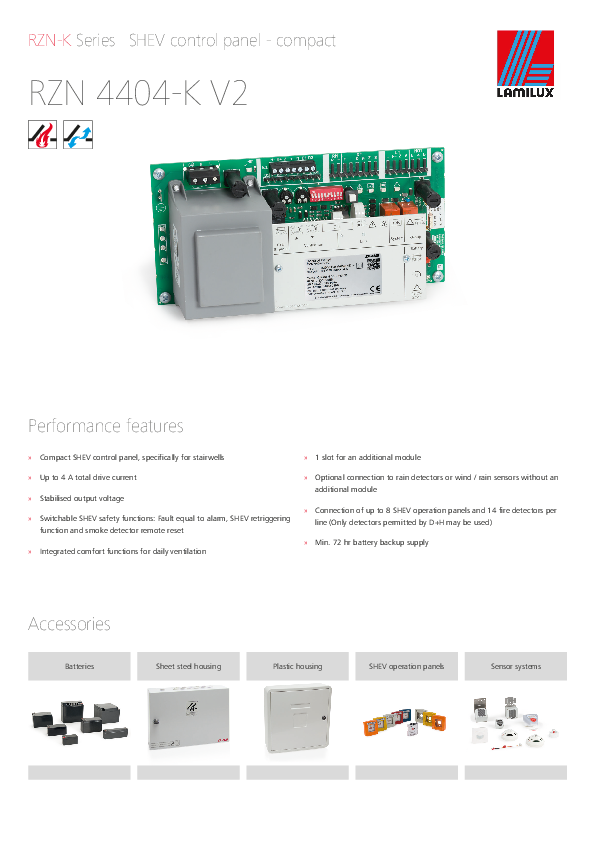

Control Panel Spec Sheet

CONTROL PANEL

Installation document

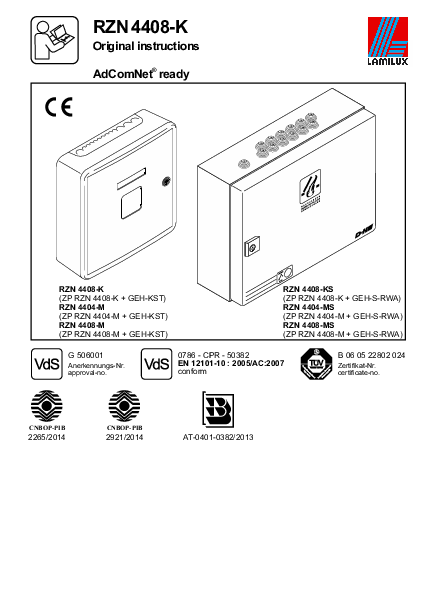

Control panel document

MANUAL CALL POINT

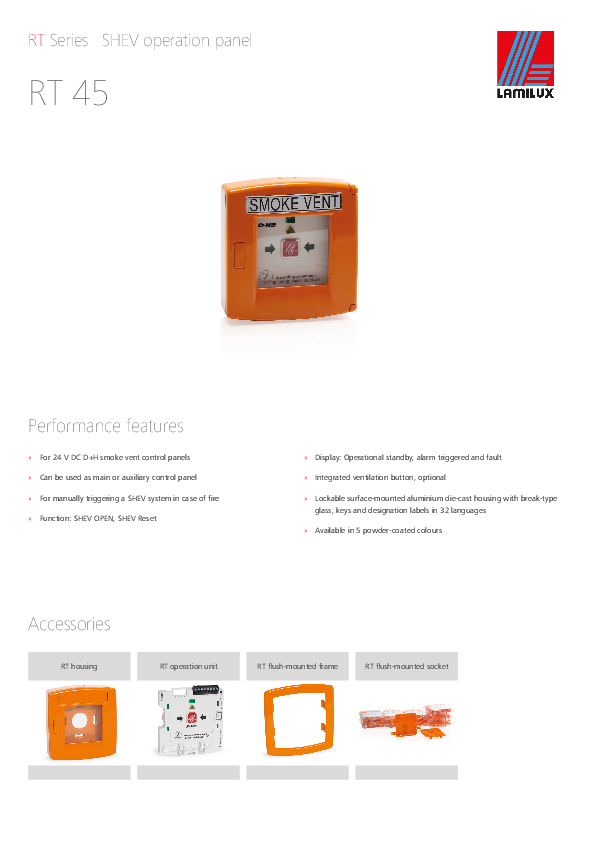

Spec sheet

Spec sheet

MANUAL CALL POINT

Installation document

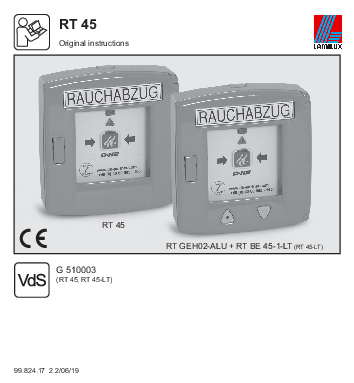

MCP Installation document

SMOKE DETECTOR

Spec sheet

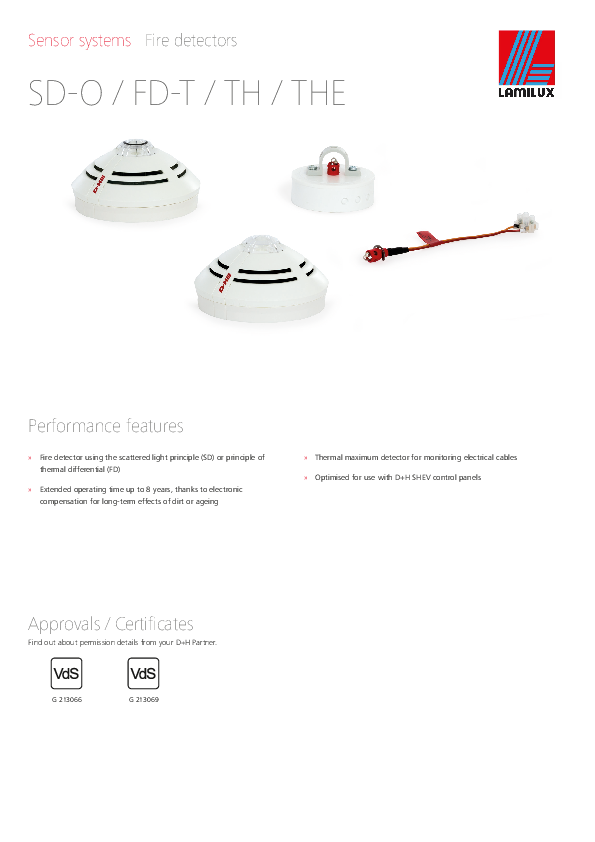

Smoke detector spec sheet

SMOKE DETECTOR

Installation document

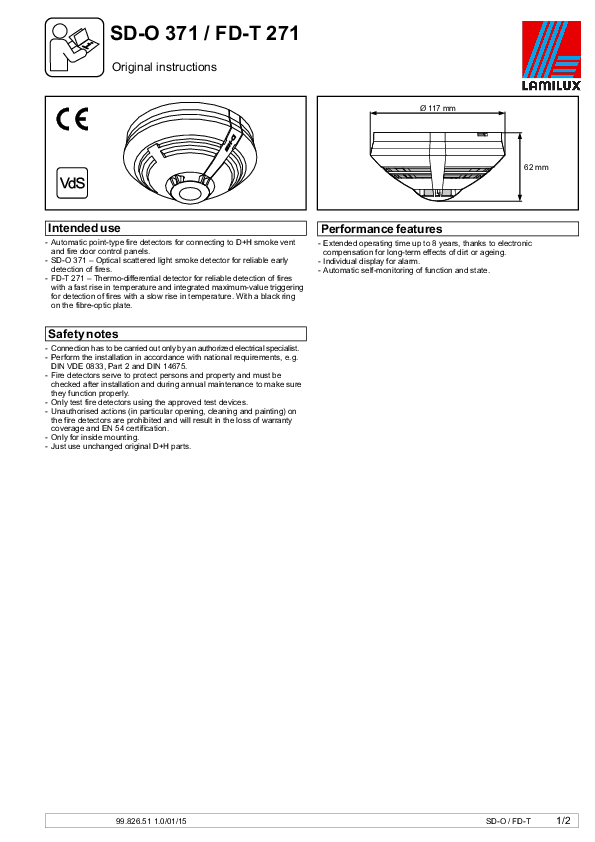

Smoke detector Installation Document

Additional Control Products

thermostat

LUX-04

Thermostat

Keyed Open/Close Switch

LUX-06

Keyed Open/Close Switch

Open/Close Switch

LUX-07

Open/Close Switch

Rain Sensor

LUX-09

Rain Sensor


Wind and rain Sensor

LUX-12

Wind Speed Sensor
