LAMILUX Glass Skylight F100

The PVC framed flat roof glass skylight with maximum energy efficiency and thermal insulation


flat glass rooflight cut out image

The  flat roof Glass Skylight F100 offers high levels of wind and rain resistance and has enhanced isothermal characteristics in the overall construction. This results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values. This skylight is suitable for flat roof residential and new build administrative or school building projects it features a flush glass to frame edge detail both internally and externally, boasting not only a visually appealing seamless design, but also ensuring rainwater can run-off easily without leaving dirty edges or water ponding. The 90mm splay on the kerbs increases daylight transmission into the building compared to traditional vertical timber kerbs.

Features and benefits

Quality

• CE marked quality according to EN 14351 with CE Label product declaration

• Factory production approved to ISO 9001:2015, which means the quality products are manufactured to a consistently high standard

• Fully factory assembled product - producing a superior quality product that reduces on-site installation time

• Enhanced isothermal characteristics in the overall construction – resulting in achieving maximum energy efficiency and thermal insulation

Design

• Thermally broken white PVC free of thermal bridges saving heating costs

• Multi layered double sealing system as standard - which reduces the risk of condensation, mould growth and air leakage

• GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering

• Delivered pre-assembled to GRP upstand - simplifying installation by removing the need for creating timber upstands

Comfort

• High daylight incidence with a light Transmittance value of 80% (reference double glazed)

• Effective acoustics and soundproofing with a sound insulation value of Rw,p 38dB (reference double glazed rooflight)

• Excellent U-values supporting whole product efficiency - Utotal1.3W/m²K and Ug-Value 1.1W/m²K (sample specification)

• Pleasant indoor climate thanks to optional natural ventilation

Use

• Skylight suited for application within flat roof residential, commercial and public buildings

• Affordable skylight for flat roofs, and roofs up to a 25° pitch, without compromising on performance levels

• Improving performance and well-being, due to daylight and ventilation, in sectors including health, office, administrative and education

• Versatile product with product variants including circular shaped version, and EN-12101-2 certified SHEV solutions

Design Your Solution


Available in 16 square and rectangular size configurations, ranging from 600 x 600mm up to 1500 x 1500mm, the Glass Skylight F100 can be specified with either double or triple glazing, a choice of kerb heights and as a fixed or opening rooflight. Download the full data sheet for detailed specification data.

Available Roof Opening Sizes

600 x 600mm    900 x 1450mm
600 x 900mm    1000 x 1000mm
600 x 1200mm    1000 x 1500mm
700 x 1350mm    1200 x 1200mm
800 x 800mm    1200 x 1500mm
800 x 1500mm    1250 x 1250mm
900 x 900mm    1400 x 1400mm
900 x 1200mm    1500 x 1500mm

isothermal diagram of rooflight

Framework

• Thermally broken PVC frame
• RAL 9016 - White
• 10° isotherm line for consistent heat       insulation

Square upstand image

Upstand Details

• Heights: 150mm / 300mm / 400mm /    500mm / 500mm 5°
• GRP heat-insulated upstand
• PVC cap flashing included
• Seamless silk-white interior finish
• Heat-resistant for hot melt processes
• Pre-assembled for quick and easy          installation

cross section of double glazing

Glazing: Double Glazed Option

• Fragility TN92 class 2
• Ug-value: c. 1.1 W/(m²K)
• Sound insulation: c. 38 dB
• Light transmittance: c. 80 %
• Energy transmission: c. 0.57
• Solar control coating available

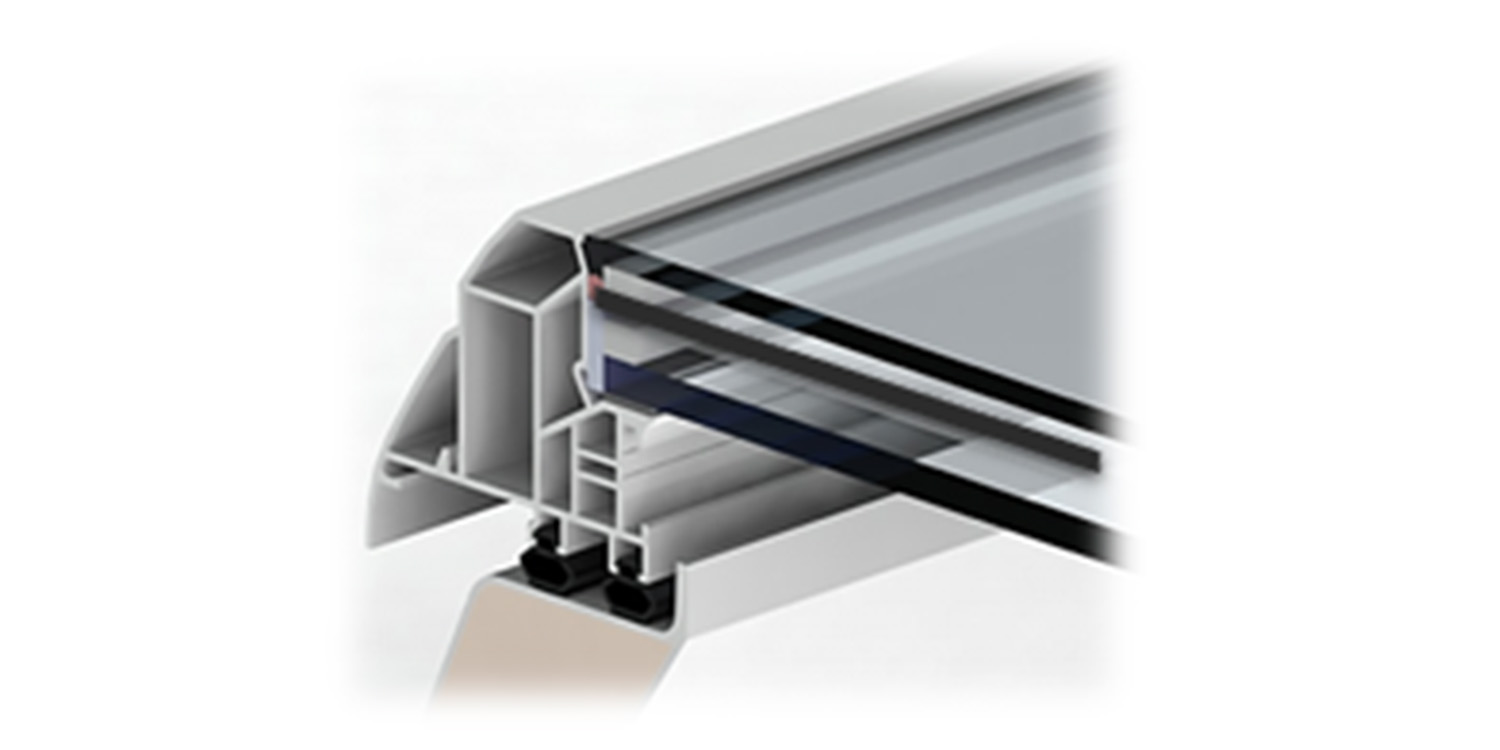

triple glazed cross section photo

Glazing: Triple Glazed Option

• Fragility TN92 class 2
• Ug-value: c. 0.7 W/(m²K)
• Sound insulation: c. 39 dB
• Light transmittance: c. 72 %
• Energy transmission: c. 0.51
• Solar control coating available

Fixed or Opening Options

• Fixed Skylight (not opening)
• Opening for natural ventilation

Explore our dedicated pages:
Roof access
Smoke Vent


opening rooflight on flat roof with drive

Ventilation details

• 230v (un-concealed) chain drive
• 300mm stroke length

For more ventilation options use the product configurator tool

Consideration must be made on rooflight installation into pitched roofs regarding hinge position orientation - please speak to a sales advisor for guidance

Opening for smoke ventilation

EN 12101-2 certified smoke ventilation product variants

Specification and Sample Drawing Downloads

1000x1000mm - Fixed

skylights

1200x1200mm - Fixed

skylights

1000x1500mm - Fixed

skylights

1000x1000mm - Opening

skylights

1200x1200mm - Opening

skylights

1000x1500mm - Opening

skylights

If standard is not what you're looking for

Use the product configurator tool to discover more sizes and options

Design details

Glass Skylight F100 technical design characteristics


Energy efficiency

The Glass Skylight F100 is the PVC framed square or rectangle shaped glass skylight with maximum energy efficiency and thermal insulation. With high levels of wind and rain resistance, alongside enhanced isothermal characteristics in the overall construction – the unrivalled performance of this range results in no condensation alongside excellent air tightness values. The thermally broken “isothermally balanced” PVC frames feature optimally aligned 10° isotherm line. This means that the thermally broken 10° isothermal line remains within the structure (see diagram) for consistent heat insulation without any weak spots, reducing condensation, mould and bacteria. The TIP (Total Insulated Product) is certified in accordance with EN ISO 14021.

Performance

•    CE marked quality according to EN 1873
•    Life Cycle Assessment (LCA) to EN 15804
•    Airtight to Class 4, EN 12207
•    Water tightness to Class 4 according to BS EN 12208
•    Wind Load to Class C4, EN 12210
•    CWCT Class 2 Non-fragile

Quality control of component manufacture:

•    Energy management system to EN ISO 50001:2011
•    Quality management system to EN ISO 9001:2015

Design detail cross section with skylight installed on flat roof

Design detail

1 - Glazing: Toughened outer and laminated safety inner

2 - Smooth crossover between glazing and frame profile, ensuring rainwater can run-off easily without any dirty edges

3 - Thermally broken White PVC (RAL 9016) frame

4 - Multi layered airtight double sealing system

5 - Thermally insulated GRP upstand with seamless silk-white interior finish (RAL 9016)

youtube-placeholder
white framed glass skylight in flat roof

Internal rooflights giving daylight

Square skylight in flat roof

PVC framed glass rooflight

Glass Skylight F100 Downloads

GLASS SKYLIGHTS

Brochure

PDF logo

CIRCULAR VERSION

Case study

PDF logo

DATA SHEET

Technical detail

PDF logo

INSTALLATION

Instructions

PDF logo

BIM DOWNLOAD

F100 Glass BIM object

BIM logo

EPD

Environmental product declaration

PDF logo
