LAMILUX Glass Skylight F100 Circular

The PVC framed round glass rooflight with maximum energy efficiency and thermal insulation


flat circular glass rooflight cut out image

The Glass Skylight F100 Circular offers high levels of wind and rain resistance and has enhanced isothermal characteristics in the overall construction. This results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values. Suitable for flat roof residential and administrative or school building projects it features a flush glass to frame edge detail both internally and externally, boasting not only a visually appealing seamless design, but also ensuring rainwater can run-off easily without leaving dirty edges or water ponding.

Features and benefits

Quality

• CE marked quality according to EN 14351 with CE Label product declaration

• Factory production approved to ISO 9001:2015, which means the quality products are manufactured to a consistently high standard

• Fully factory assembled product - producing a superior quality product that reduces on-site installation time

• Enhanced isothermal characteristics in the overall construction – resulting in achieving maximum energy efficiency and thermal insulation

Design

• Thermally broken white curcular PVC frame free of thermal bridges saving heating costs

• Multi layered double sealing system as standard - which reduces the risk of condensation, mould growth and air leakage

• GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering

• Delivered pre-assembled to GRP upstand - removing the need for creating timber curved upstands

Comfort

• High daylight incidence with a light Transmittance value of 79% (reference double glazed)

• Effective acoustics and soundproofing with a sound insulation value of Rw,p 38dB (reference double glazed rooflight)

• Excellent U-values supporting whole product efficiency - Utotal 1.2W/m²K and Ug-Value 1.1W/m²K (reference 1000mm double glazed)

• Pleasant indoor climate thanks to optional natural ventilation

Use

• Suited for application within residential, commercial and public buildings

• Affordable skylight in circular design for flat roofs, up to a 25° pitch, without compromising on performance levels

• Improving performance and well-being, due to daylight and ventilation, in sectors including health, office, administrative and education

Click here to download the case study showcasing the supply and install at a kindergarten in Germany

Design Your Solution


The Glass Skylight F100 Circular is available in roof opening sizes ranging from 600 mm up to 1800 mm in diameter. It can be tailored with either double or triple glazing, offered in various kerb heights, and specified as a fixed or opening rooflight to suit project needs. For full technical details, download the complete data sheet here.

flat circular glass rooflight cut out image

Available Roof Opening Sizes

600mm
800mm
900mm
1000mm
1200mm
1500mm
1800mm

Isothermal diagram of framework

Framework

• Thermally broken PVC frame
• RAL 9016 - White
• 10° isotherm line for consistent heat       insulation

circular upstand

Upstand Details

• Heights: 300mm / 500mm / 700mm     / 500mm 5°
• GRP heat-insulated upstand
• Seamless silk-white interior finish
• Heat-resistant for hot melt processes
• Pre-assembled for quick and easy          installation

cross section of double glazing

Glazing: Double Glazed Option

• Fragility TN92 class 2
• Ug-value: c. 1.1 W/(m²K)
• Sound insulation: c. 38 dB
• Light transmittance: c. 79 %
• Energy transmission: c. 0.61
• Solar control coating available

triple glazed cross section photo

Glazing: Triple Glazed Option

• Fragility TN92 class 2
• Ug-value: c. 0.6 W/(m²K)
• Sound insulation: c. 39 dB
• Light transmittance: c. 72 %
• Energy transmission: c. 0.51
• Solar control coating available

Opening Glass Skylight

Fixed or Opening Options

• Fixed Rooflight (not opening)
• Opening for natural ventilation:
­ Manual opening*
­ 230v spindle opener*
­ 24v spindle opener*
­ Chain drive (concealed)*

* Ventilation options subject to rooflight dimensions

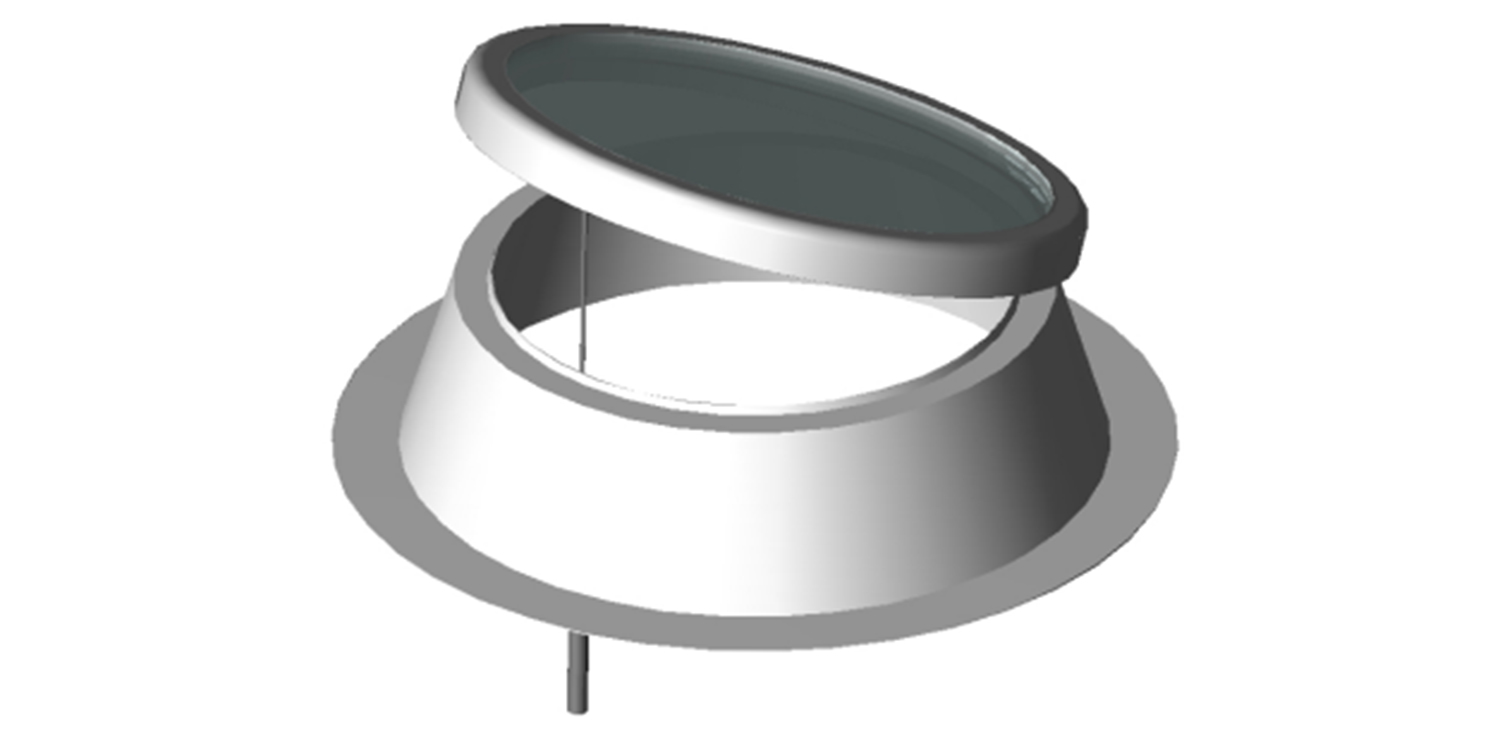

open rooflight with motor

Standard ventilation details

• 230v spindle motor
• 300mm stroke length

For more ventilation options use the product configurator tool

Specification and Sample 3D PDF Data Sheet Downloads

SPECIFICATION Fixed version

NBS logo

1000mm diameter - Fixed

PDF logo

1500mm diameter - Fixed

PDF logo

SPECIFICATION Opening version

NBS logo

1000mm diameter - Opening

PDF logo

1500mm diameter - Opening

PDF logo

If standard is not what you're looking for

Use the product configurator tool to discover more sizes and options

Design details

Glass Skylight F100 Circular technical design characteristics


Energy efficiency

The Glass Skylight F100 Circular is the PVC framed round glass skylight with maximum energy efficiency and thermal insulation. With high levels of wind and rain resistance, alongside enhanced isothermal characteristics in the overall construction – the unrivalled performance of this range results in no condensation alongside excellent air tightness values. The thermally broken “isothermally balanced” PVC frames feature optimally aligned 10° isotherm line. This means that the thermally broken 10° isothermal line remains within the structure (see diagram) for consistent heat insulation without any weak spots, reducing condensation, mould and bacteria. The TIP (Total Insulated Product) is certified in accordance with EN ISO 14021.

Performance

•    CE marked quality according to EN 1873
•    Life Cycle Assessment (LCA) to EN 15804
•    Airtight to Class 4, EN 12207
•    Water tightness to Class 4 according to BS EN 12208
•    Wind Load to Class C4, EN 12210
•    CWCT Class 2 Non-fragile

Quality control of component manufacture:

•    Energy management system to EN ISO 50001:2011
•    Quality management system to EN ISO 9001:2015

cross section of rooflight

Design detail

1 - Glazing: Toughened outer and laminated safety inner

2 - Smooth crossover between glazing and frame profile, ensuring rainwater can run-off easily without any dirty edges

3 - Thermally broken White PVC (RAL 9016) frame

4 - Multi layered airtight double sealing system

5 - Thermally insulated GRP upstand with seamless silk-white interior finish (RAL 9016)

youtube-placeholder
3 circular rooflights on green roof

Circular skylights

round skylight

Circular rooflights

Glass Skylight F100 Circular Downloads

GLASS SKYLIGHTS

Brochure

PDF logo

KINDERGARDEN

Case study

PDF logo

DATA SHEET

Technical detail

PDF logo

INSTALLATION

Instructions

PDF logo

BIM DOWNLOAD

F100 Glass Circular BIM object

BIM logo

EPD

Environmental product declaration

PDF logo
