Roof access hatch solutions

for stair and ladder access to your roof or terrace

Stair Access

luxury access
to the
roof terrace

Square roof access hatch

Flat Roof Access Hatch Square

The Flat Roof Access Hatch Comfort Square makes it possible, for the first time, to also use spiral and platform staircases underneath. The 'Square' only takes 45 seconds for the concealed hydraulic drives to silently open the 4m² glass element of the skylight by 70 degrees. The variant does not require any additional space on the roof terrace than its own size in closed form, even when open, thanks to its swing mechanism. Featuring unrestricted use as a natural ventilation device and convenient access to the roof terrace, the indoor climate also benefits from the high energy efficiency, thanks to the thermally broken frame and excellent air tightness values

swing roof access hatch

Flat Roof Access Hatch Comfort Swing

The Flat Roof Access Hatch Comfort Swing, is a space saving, swift opening roof access hatch which opens to 84° in approx. 25 seconds. Available with a choice of 2 lengths - 3000mm or 3500mm, the 1000mm wide Flat Roof Access Hatch Comfort Swing is suitable as a convenient and comfortable, horizontally opening, roof access product for stairs. The hydraulically opening roof access hatch benefits from enhanced isothermal characteristics in the overall construction – this results in no condensation, whilst achieving maximum energy efficiency and thermal insulation, alongside excellent air tightness values

solo roof access hatch

Flat Roof Access Hatch Comfort Solo

The Flat Roof Access Hatch Comfort Solo, measures 1200x3500mm, and is suitable as a convenient and comfortable horizontally opening roof access hatch for stairs. The 6° inclination ensures excellent natural water and dirt drainage. The motorised opening roof access hatch benefits from enhanced isothermal characteristics in the overall construction – this results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values

Duo roof access hatch

Flat Roof Access Hatch Comfort Duo

The Flat Roof Access Hatch Comfort Duo is the 2-leaf horizontally opening roof access hatch, measuring 1200x3000mm, which is suitable as a roof access for stairs. The 3° inclined 400mm – 550mm high upstand height, and the 5° surface inclination ensures excellent natural water and dirt drainage. The motorised opening roof access hatch benefits from enhanced isothermal characteristics in the overall construction – this results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values

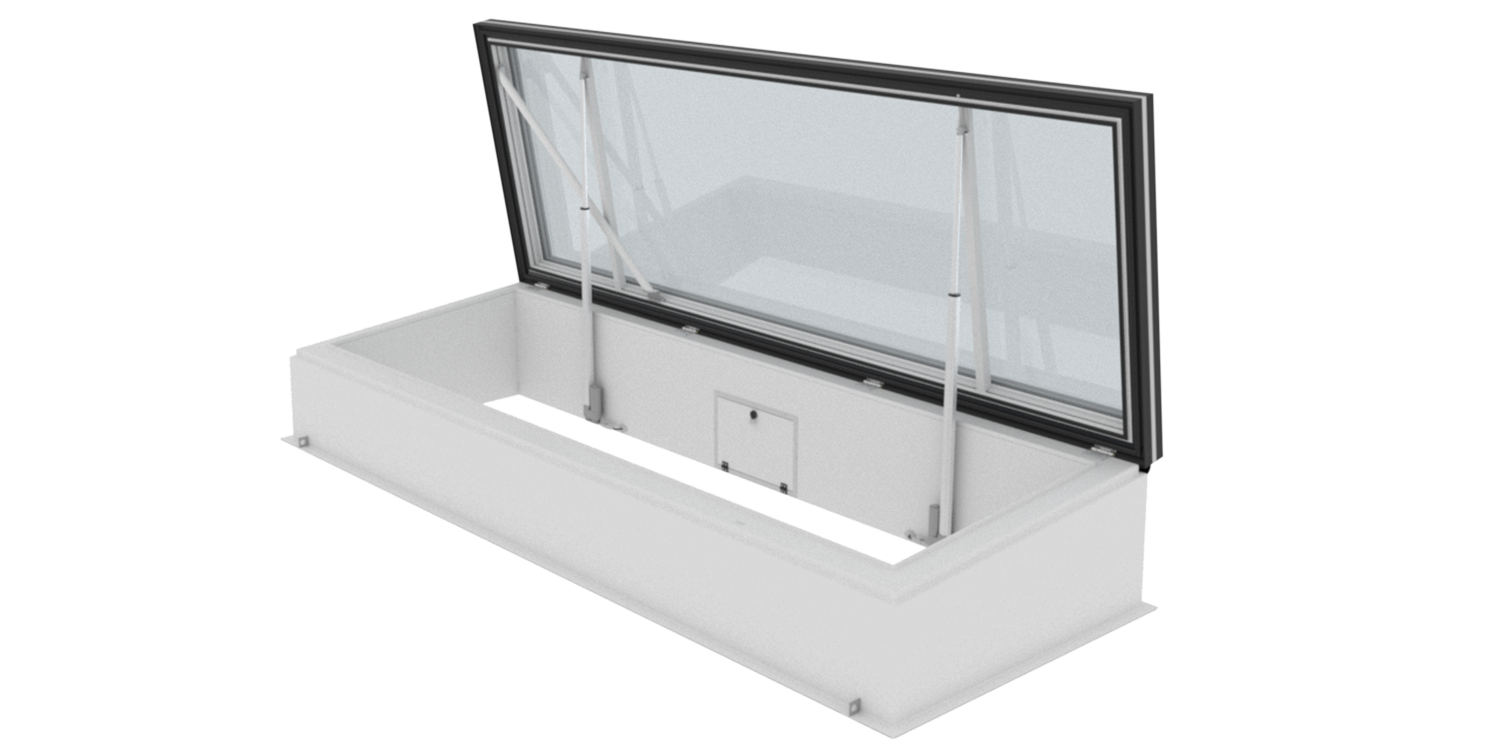

Ladder Access

flat roof
access hatch
for maintanance

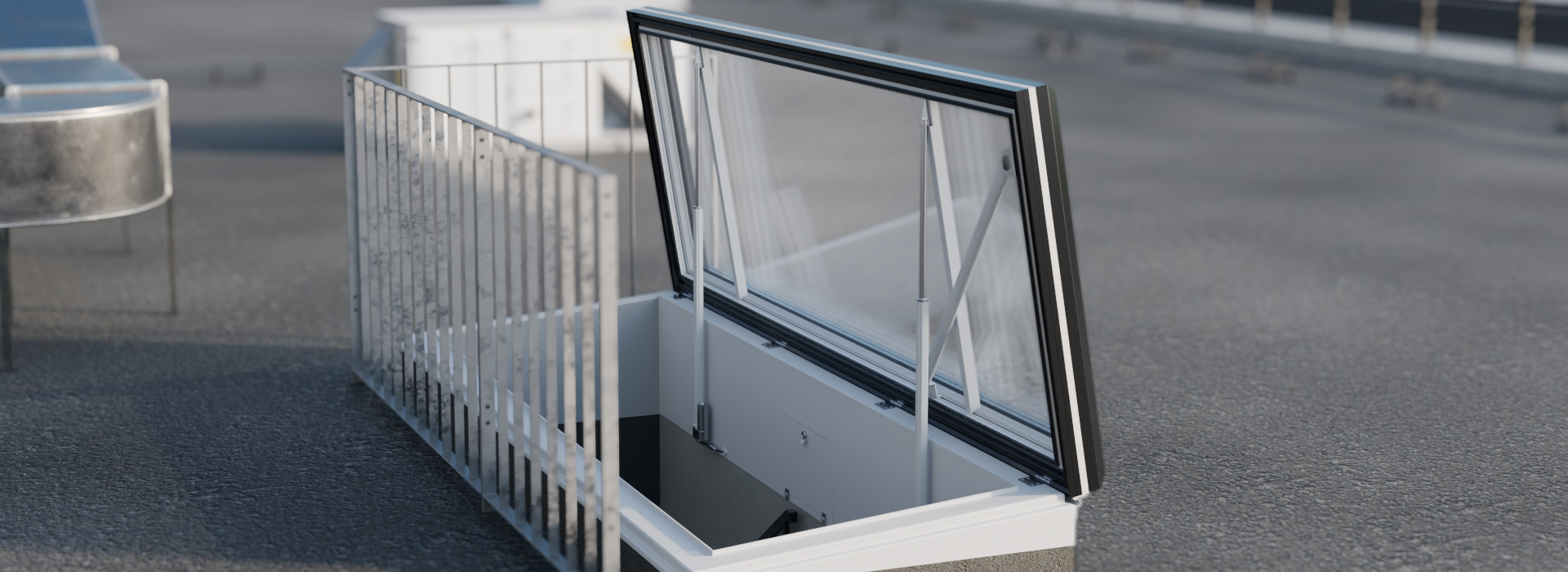

Roof Access Hatch Rooflight in open position

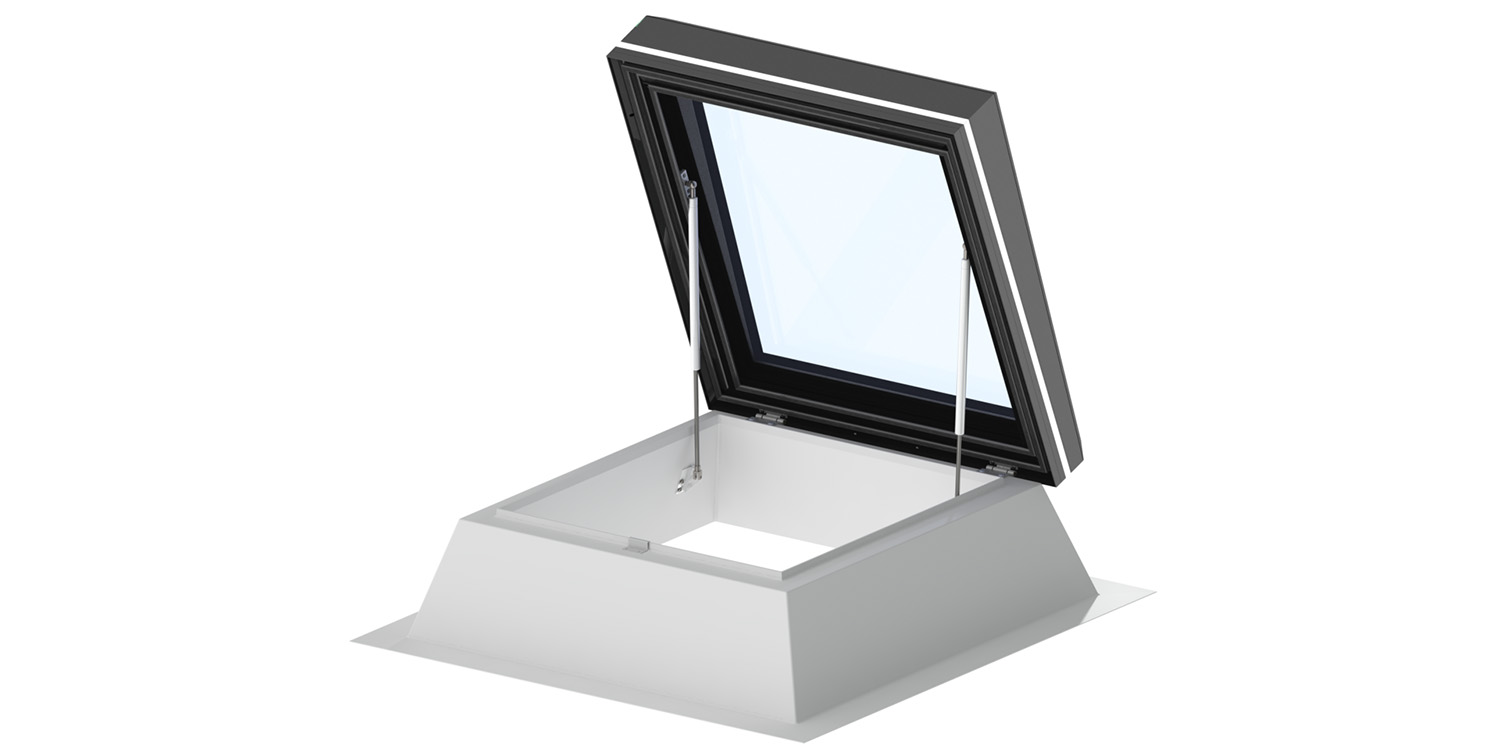

Glass Skylight FE Access Hatch - Aluminium Frame

The luxurious thermally broken aluminium framed LAMILUX Glass Skylight FE Roof Access Hatch offers the perfect solution for quick and convenient roof access, all while bringing daylight into the building and serving for daily ventilation purposes as an optional extra. Featuring high levels of wind and rain resistance and enhanced isothermal characteristics in the overall construction, this range achieves maximum energy efficiency and thermal insulation. Supplied and delivered completely pre-assembled on the fully insulated GRP kerb, it can be fixed directly to the roof deck opening by simply sealing the roof membrane up the outside of the kerb.

Glass roof access hatch open

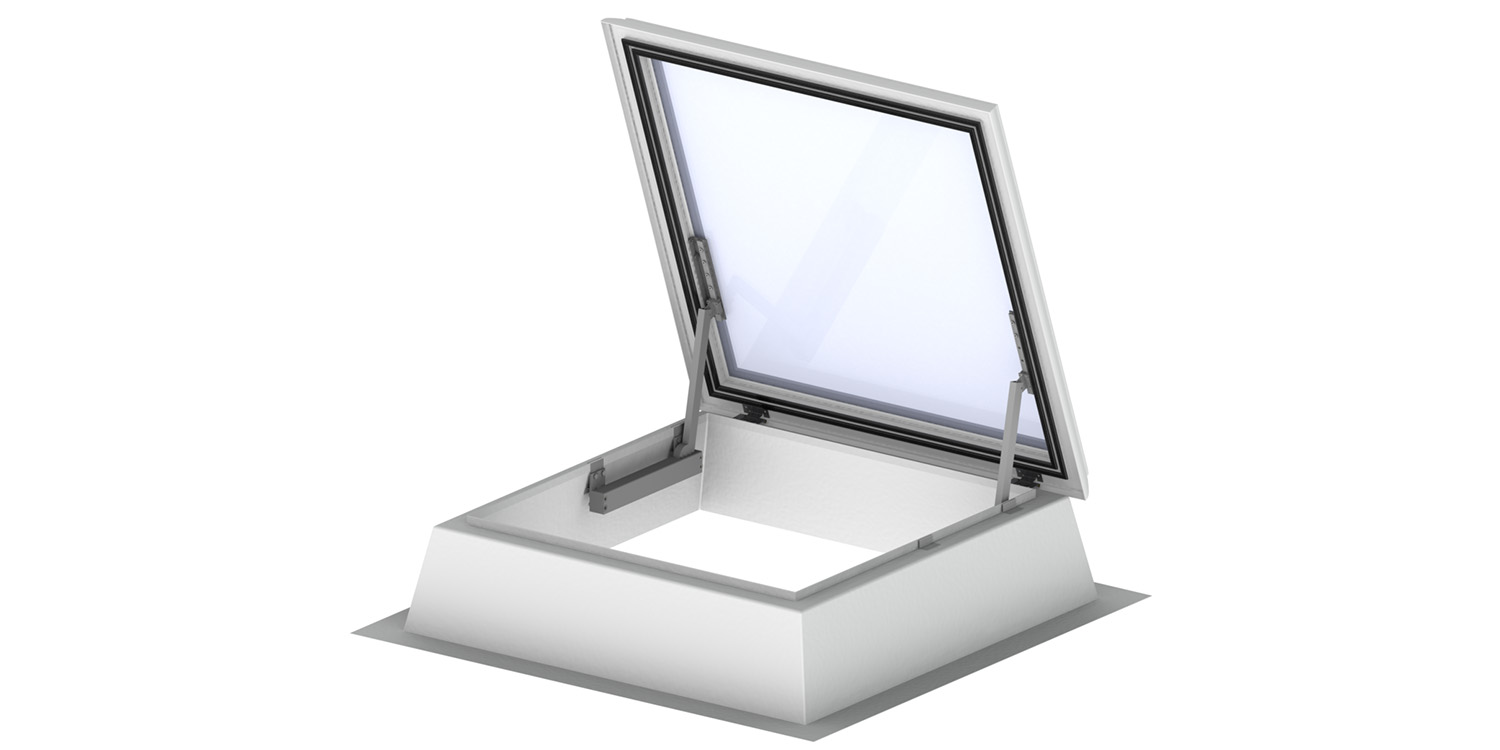

Glass Skylight F100 Access Hatch - PVC Frame

The cost effective, architecturally attractive Glass Skylight F100 Roof Access Hatch offers high levels of wind and rain resistance and has enhanced isothermal characteristics in the overall construction – this results in no condensation, whilst achieving maximum energy efficiency and thermal insulation, alongside excellent air tightness values. It features a flush glass to frame edge detail both internally and externally, boasting not only a visually appealing seamless design, but also ensuring rainwater can run-off easily, without leaving dirty edges or water pooling. The ideal flat roof access hatch for maintenance and repair work on the roof

Rooflight dome open for roof access

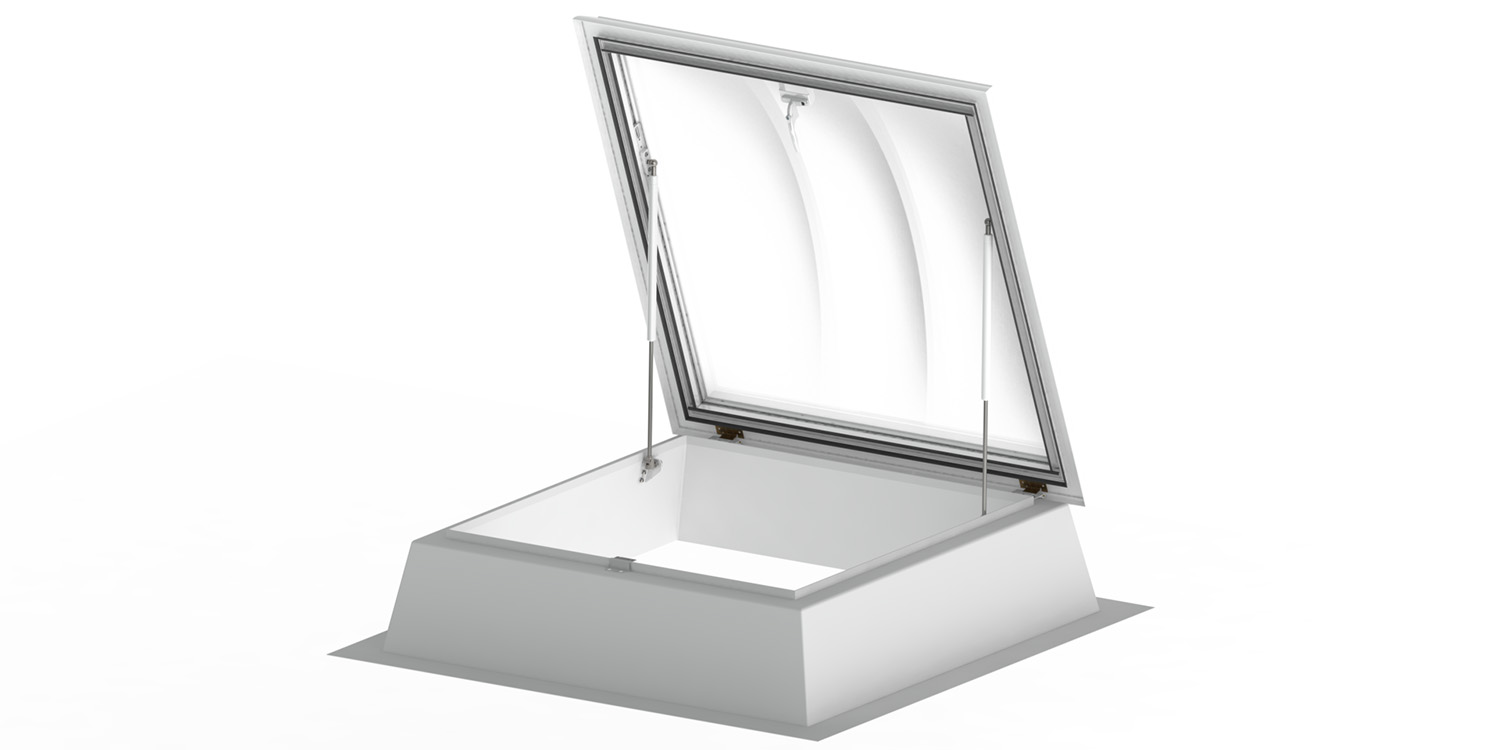

Rooflight F100 Dome Access Hatch - PVC Frame

The PVC framed Rooflight F100 Dome Access Hatch offers a classic, cost effective design, without compromising on the high levels of wind and rain resistance, air tightness values and enhanced isothermal characteristics you expect with all LAMILUX products. Designed completely free of thermal bridges for optimum U-values and reduced risk of condensation, the classic dome from LAMILUX is an ideal addition for flat roof commercial or industrial building projects, and school new builds, increasing daylight transmission into the building whilst providing occasional access to and from the roof for maintanance

LAMILUX Roof Access Hatch

Solutions for ladder and stair access


Stair access range
In densely populated urban areas, where the number of floors in housing is sometimes limited and private gardens are rare, a rooftop terrace or patio is becoming a popular design choice. However, many residential buildings, with rooftop gardens, don’t see much daylight and careful consideration is required to determine an access point to the roof terrace. For such rooftop projects, a new dimension of roof access is offered by the LAMILUX Flat Roof Access Hatch Comfort range, designed to give generous daylight intake in attic apartments alongside convenient access to the roof terrace creating an air of grace and beauty both internally and externally

youtube-placeholder

Ladder access range
The LAMILUX ladder access range of roof access hatches offer the perfect solution for quick and convenient roof access, all while bringing daylight into the building and serving for daily ventilation purposes as an optional extra. This range is an ideal addition for flat roof commercial or industrial building projects, and school new builds increasing daylight transmission into the building whilst providing occasional access to and from the roof for maintenance purposes.


All LAMILUX roof access hatch products have one further thing in common: They are delivered completely pre-assembled to the construction site, lifted onto the roof by a crane provided by the customer and then installed swiftly and easily. This minimizes the risk of errors and saves valuable time – both for the contractor and for the apartment user who ultimately gains access to the roof terrace.
