LAMILUX Glass Skylight FE Circular

The aluminium framed circular glass rooflight with maximum energy efficiency


flat circular glass rooflight cut out image

The Glass Skylight FE Circular offers high levels of wind and rain resistance and has enhanced isothermal characteristics. This results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values. Suitable for flat roof residential and administrative or school building projects the Glass Skylight FE circular is delivered as a fully pre-assembled unit with its GRP upstand, which ensures a quick and easy installation, removing the need to construct difficult circular timber upstands on site.

Features and benefits

Quality

• CE marked quality according to EN 14351 with CE Label product declaration

• Factory production approved to ISO 9001:2015, which means the quality products are manufactured to a consistently high standard

• Fully factory assembled circular skylight - producing a superior quality product that reduces on-site installation time

• Enhanced isothermal characteristics in the overall construction – resulting in achieving maximum energy efficiency and thermal insulation

Design

• Thermally broken aluminium frame free of thermal bridges saving heating costs

• Multi layered double sealing system as standard - which reduces the risk of condensation, mould growth and air leakage

• GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering

• Circular rooflight delivered pre-assembled to GRP upstand - removing the need for creating timber curved upstands

Comfort

• High daylight incidence with a light Transmittance value of 80% (reference double glazed)

• Effective acoustics and soundproofing with a sound insulation value of Rw,p 38dB (reference double glazed rooflight)

• Excellent U-values supporting whole product efficiency - Utotal 1.2W/m²K and Ug-Value 1.1W/m²K (reference 1000mm)

• Pleasant indoor climate thanks to optional natural ventilation

Use

• Suited for application within residential, commercial and public buildings

• Suitable for flat roof (and roofs up to a 25° pitch inclination) new build or refurbishment building projects

• Improving performance and well-being, due to daylight and ventilation, in sectors including health, office, administrative and education

Click here to view the case study showcasing the supply and install at Milton Keynes University Hospital

Design Your Circular Rooflight


The Glass Rooflight FE Circular is a high-performance circular rooflight designed for roof openings up to 2200 mm in diameter. Supplied preassembled on a round kerb, it makes installation simple and efficient, with no need to construct awkward circular kerbs on site. This glass rooflight can be specified with double or triple glazing, available in a variety of kerb heights, and configured as either a fixed rooflight or an opening rooflight to suit different project requirements. For complete technical information, download the full rooflight data sheet here.

flat circular glass rooflight cut out image

Available Roof Opening Sizes

900mm
1000mm
1200mm
1500mm
1800mm
2000mm
2200mm

isothermal diagram of framework

Framework

• Circular thermally broken frame
• PPC. coated aluminium frame
• Coated in any single RAL colour
• Dual colour finish provided upon request at an additional charge
• 10° isotherm line for consistent heat       insulation

circular upstand

Upstand Details

• Heights: 300mm / 500mm / 700mm
• GRP heat-insulated upstand
• Seamless silk-white interior finish
• Heat-resistant for hot melt processes
• Pre-assembled for quick and easy          installation

double glazing cross section

Glazing: Double Glazed Option

• Ug-value: c. 1.1 W/(m²K)
• Sound insulation: c. 38 dB
• Light transmittance: c. 80 %
• Energy transmission: c. 0.62

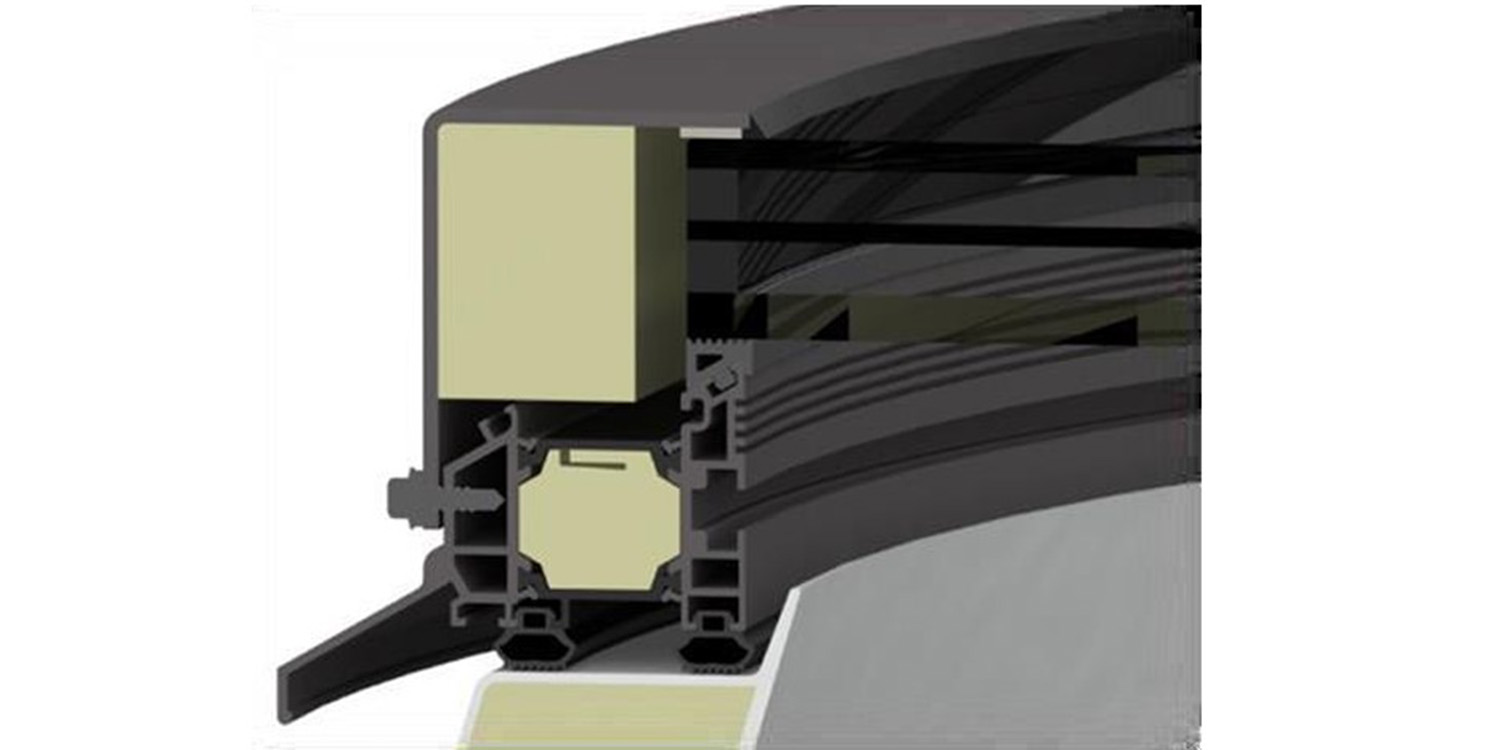

Section photo of triple glazed rooflight

Glazing: Triple Glazed Option

• Ug-value: c. 0.6 W/(m²K)
• Sound insulation: c. 39 dB
• Light transmittance: c. 72 %
• Energy transmission: c. 0.51

Circular rooflight open for ventilation

Fixed or Opening Options

• Fixed Rooflight (not opening)
• Opening for natural ventilation*
­
* Ventilation options subject to rooflight dimensions

Tamdem spindle drive on circular rooflight

Standard: ventilation details

• Tandem spindle drive
• 300mm stroke length

Call 01284 749051 or email the team at sales(at)lamiluxskylights.co.uk now to discuss your ventilation requirements

Specification and Sample Drawing Downloads

SPECIFICATION Fixed Version

NBS logo

SPECIFICATION Opening Version

NBS logo

1000mm diameter - Opening

skylights

1500mm diameter - Opening

skylights

High-Performance Rooflight for Residential and Commercial Projects

Contact our sales team to discuss the FE Circular Skylight range


A wide range of ventilation features, glazing choices, and accessories are available to tailor your rooflight. Call us today on 01284 749051 or email sales(at)lamiluxskylights.co.uk to discuss your bespoke requirements and get expert guidance from our team.

Glass Skylight circular

open glass skylight - exterior view

Internal view of glass round rooflight

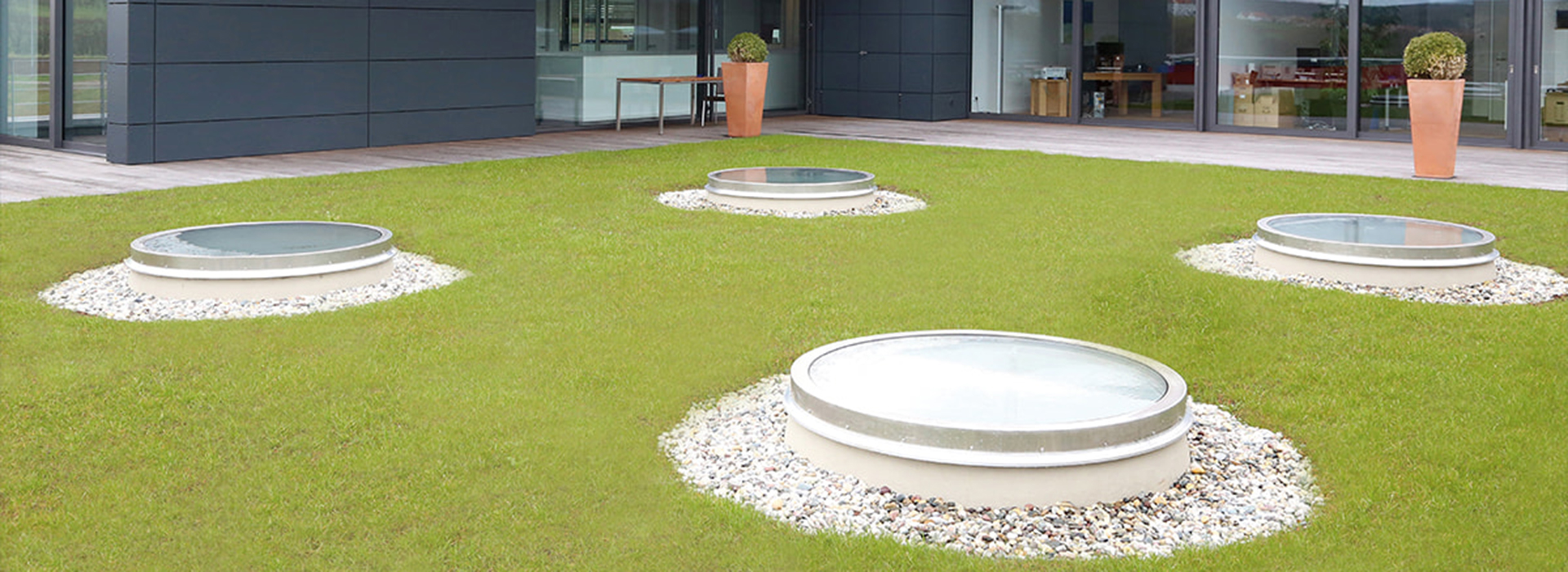

round rooflights on green roof

Circular glass skylight

Design details

Glass Skylight FE Circular technical design characteristics


Energy efficiency

The Glass Skylight FE Circular is the aluminium framed circular shaped glass skylight with maximum energy efficiency and thermal insulation. With high levels of wind and rain resistance, alongside enhanced isothermal characteristics in the overall construction – the unrivalled performance of this range results in no condensation alongside excellent air tightness values. The circular thermally broken “isothermally balanced” aluminium frames feature optimally aligned 10° isotherm line. This means that the thermally broken 10° isothermal line remains within the structure (see diagram) for consistent heat insulation without any weak spots, reducing condensation, mould and bacteria. The Glass Skylight FE Circular also benefits from precision profiles incorporating Thermo Active Design which produces the smooth isothermal lines. TIP Total Insulated Product is certified in accordance with EN ISO 14021.

Performance

•    CE marked quality according to EN 1873
•    Life Cycle Assessment (LCA) to EN 15804
•    Airtight to Class 4, EN 12207
•    Water tightness to Class 4 according to BS EN 12208
•    Wind Load to Class C4, EN 12210


Quality control of component manufacture:

•    Energy management system to EN ISO 50001:2011
•    Quality management system to EN ISO 9001:2015

cross section diagram of rooflight

Design detail

1 - "Warm edge" (spacers between the panes, made of materials with low thermal conductivity), as a standard feature

2 - TAD – Thermo Active Design: Kink-free isothermal curve in the profile system

3 - Aluminium border frame with optimised insulation core

4 - Thermally insulated GRP upstand with seamless silk-white interior finish (RAL 9016)
