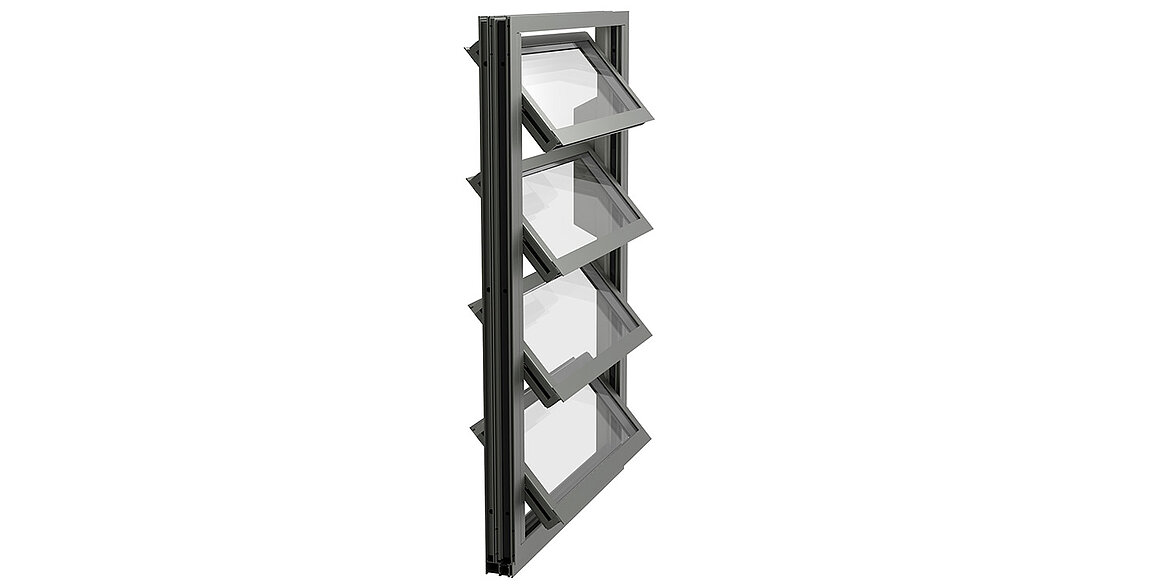

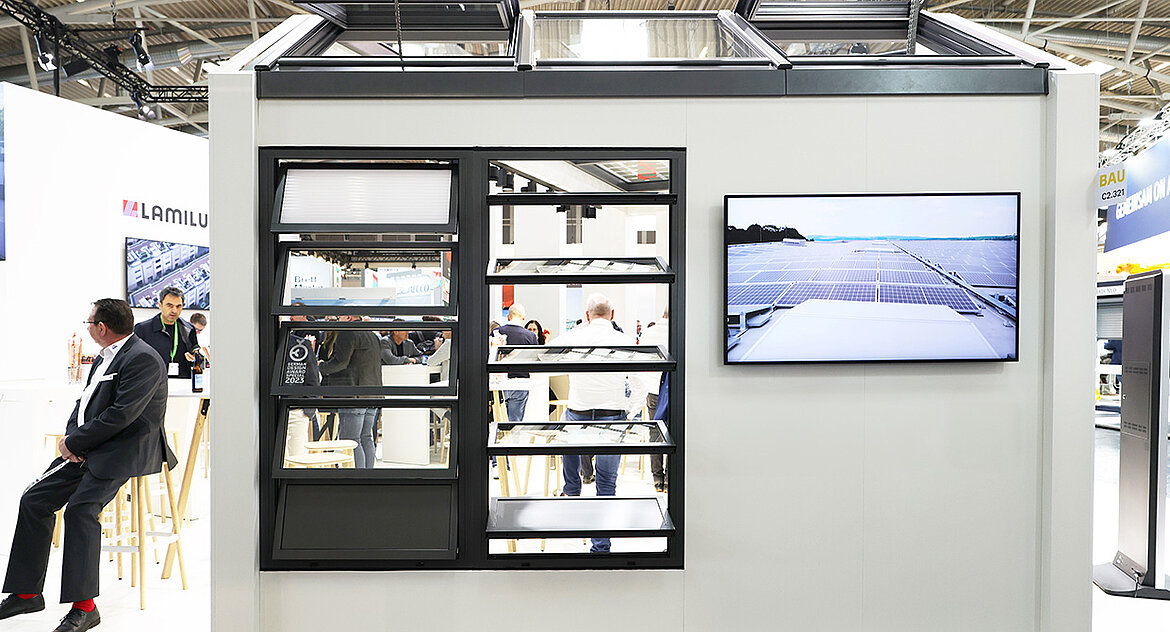

Airstream Louvre Window

The EN 12101-2 certified glass daylight and ventilation louvre system from LAMILUX


TGL ISO Louvre vent

The EN 12101-2 compliant LAMILUX Airstream Vertical Glass Louvred SHEV window is a multifunctional architectural highlight for daylight, ventilation and safety. With the frame and blade profiles made of thermally separated aluminium, this thermally separated louvre window not only boasts excellent thermal performance but also enhances the buildings aesthetics when installed within the vertical façade of any commercial or industrial building.

Features and benefits

Quality

• CE marked quality according to EN 14351 and EN12101-2 certified

• Built for durability with 4A rain tightness, class 3 air permeability, and C5 wind load resistance to meet top industry standards

• Easily accessible and replaceable components for simple maintenance and dependable durability

Design

• Frame and blade profiles made of fully thermally separated aluminium

• Frame width options available from 400–1400 mm, with ability to add-on adjacent louvres for wider setups

• Choice of double or triple glazed glass blades for optimal natural daylight

Comfort

• Brings natural daylight and fresh air into the interior spaces of the building

• Meets high standards for both heat insulation and sound protection, ensuring optimal energy efficiency and acoustic comfort

• Integration into the façade of industrial and commercial buildings to visually enhance the building envelope

Use

• Suited for installation within vertical façades for natural daylight and ventilation

• Central pivot opening ensures efficient fresh air ventilation and effective smoke extraction during fire emergencies

• EN 12101-2 certified smoke and heat ventilation in case of fire

Product details

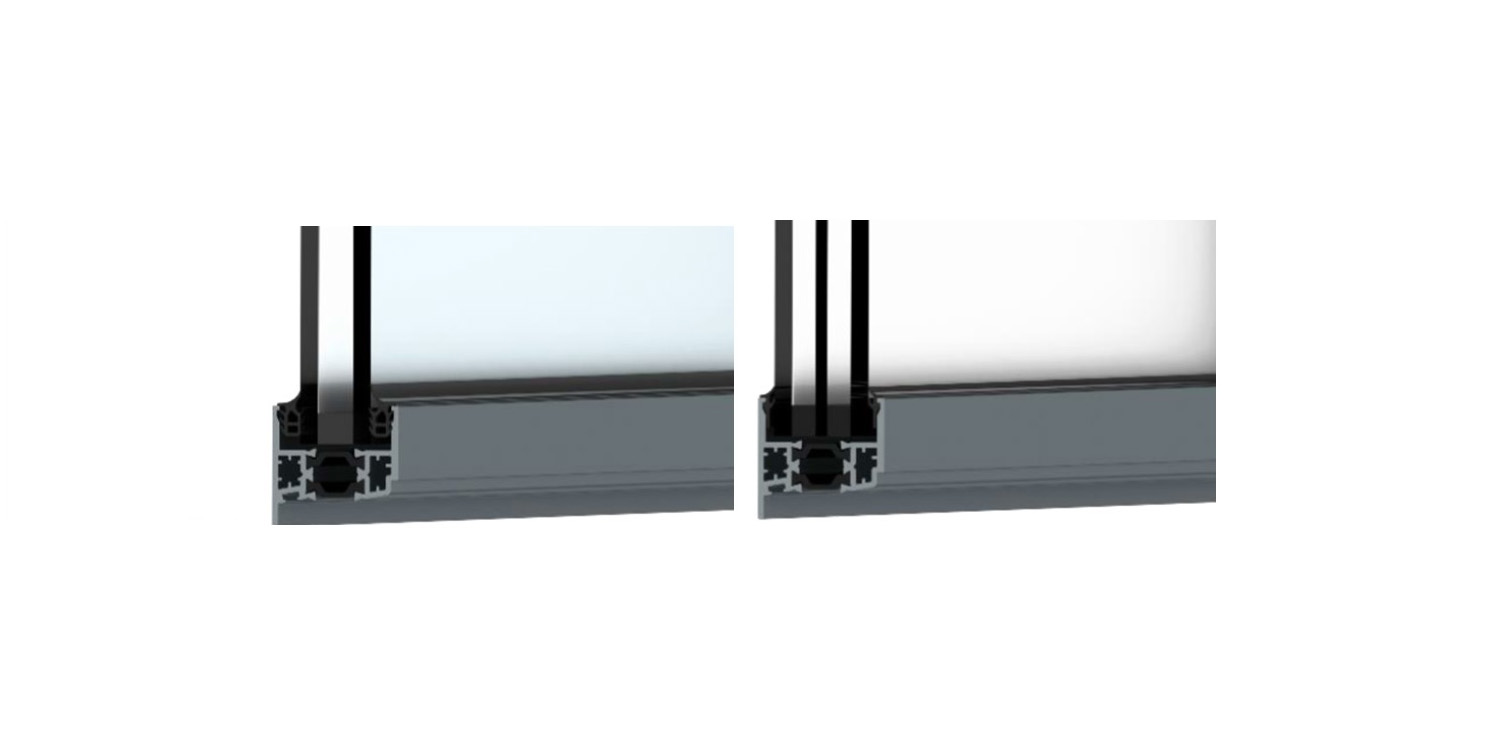

Double glass and triple glass

Glazing

• Insulating double Ug 1.1W/(m²k) or triple Ug 0.9W/(m²k) glazing
• Driving rain tightness: EN 1027: 4A
• Air permeability: EN 1026 classification 3
• Wind resistance: EN 12211 classification C5
• Sound insulation: c. 32-32dB

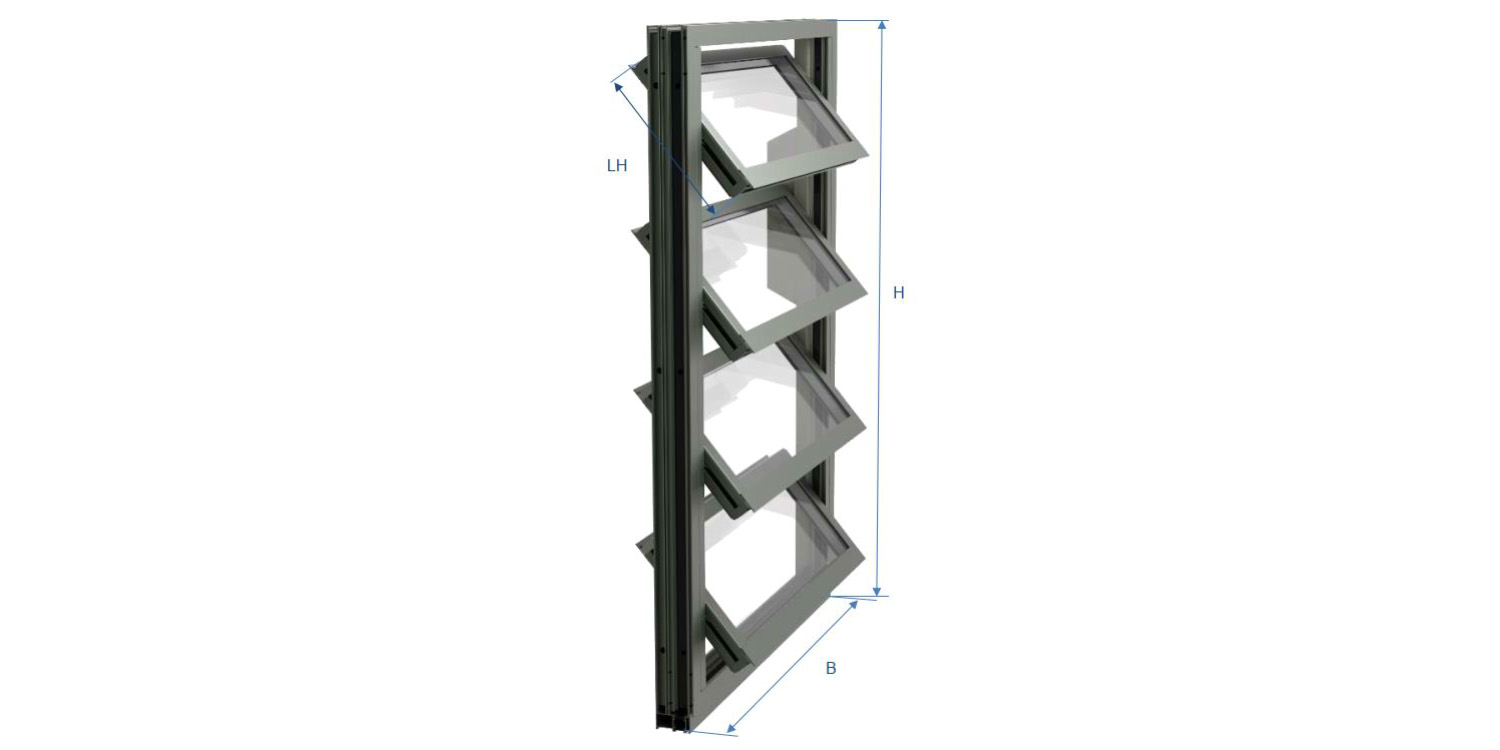

Airstream glass panel with dimensions

Dimensions

• Variable slat height (LH): 150-400mm
• Window width (B): 400-1400mm (1mm increments)
• Window height (H): 500-2500mm (1mm increments)
• Wider widths possible with louvre window connectors available
• Height and number of slats will derive from selected window width and height

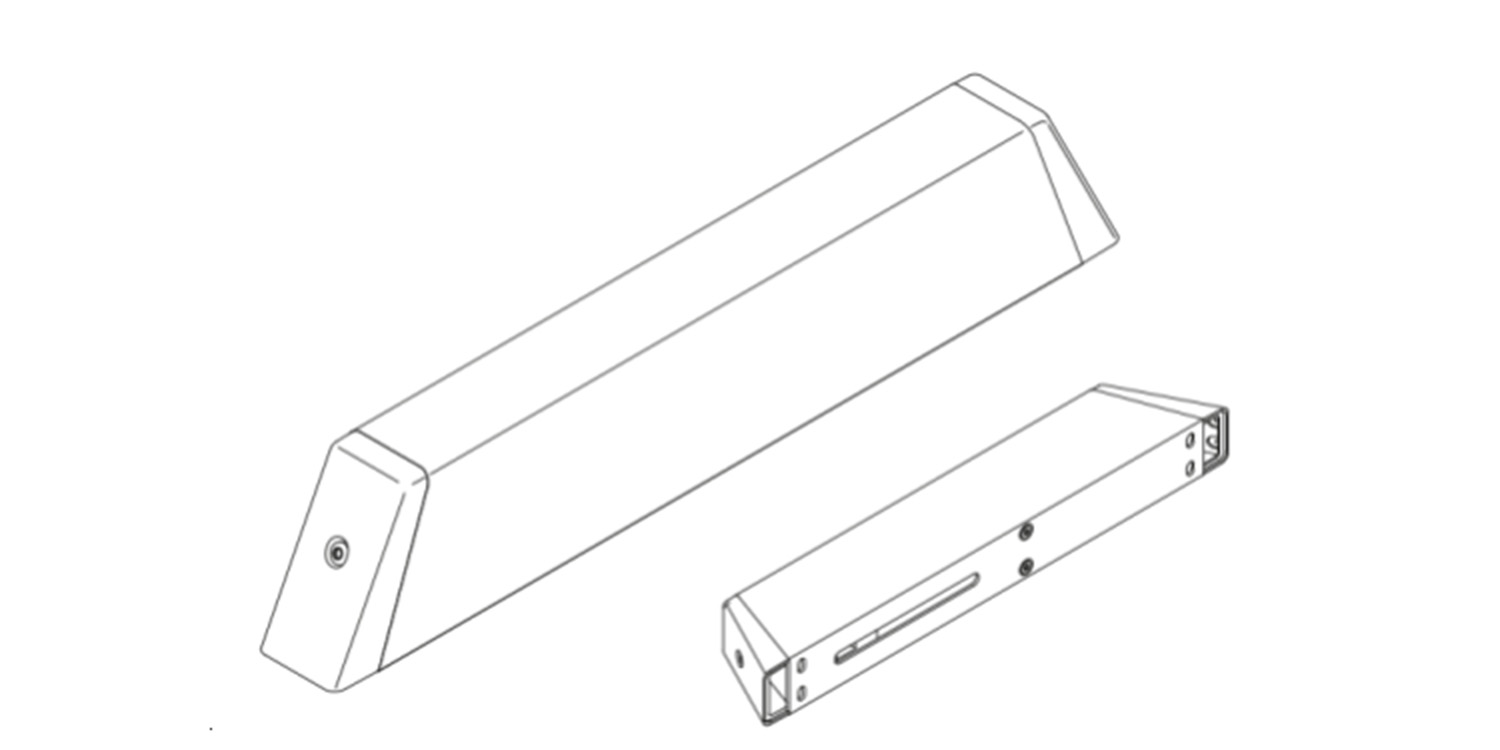

Airstream 24v drive drawing

Drive

• E24V Actuator for daily and smoke ventilation
• Voltage 24v DC
• Service life >20,000 double strokes
• Current consumption: 1.4A | 1.6A
• Nominal force: 1400N | 1800N

Controls


LAMILUX offer a range of controls to provide the complete solution to Smoke and Ventilation requirements. The LAMILUX standard controls package (order code LUX-01) consists of a Control Panel, Manual Control Point and Smoke Detector

Click here to view the standard controls package

LUX-01 - Control kit

If the glass louvre system is not what you're looking for

Contact our sales team for more options on the LAMILUX roda Louvre range


Other sizes, ventilation details, glazing options and accesories are also available. Call 01284 749051 or email the team at sales@lamiluxskylights.co.uk now to discuss your project specific requirements.

Glass louvre vents on building envelope

Glass louvre vents integrated in building facade

Glass building with glass louvred vents

Design details

Airstream Louvre Window technical design characteristics


Closed and open positions of glass louvre windows

Performance and technical detail

•Frame and blade profiles with thermally insulated aluminum
•Thermally insulating glass with aluminium spacer
•Sealings: Friction-coated, silicone-free EPDM seals to ensure optimum air and water tightness
•Approved as a NSHEV according to EN 12101-2
•Operation: E24V motor, 24V, 1.4 / 1.6 A, 1400 / 1800 N. Service life: >20,000 double strokes
•Flexible connection configurations offered, including for window sill profiles
•Reliable drainage in the base area
•Designed for quick and easy replacement of slats, mechanics, and drives


LAMILUX Airstream Louvre Window Downloads

LOUVRE WINDOWS

Brochure

PDF logo

TGL DATA SHEET

Technical Detail

PDF logo

Dominion House

Case study

KINGS CROSS

Case study

PDF logo

NATURAL VENTILATION ALTURNATIVE

Airjet Technical Detail

roda and LAMILUX

Press Release

PDF Logo
